HLB
Low energy consumption, simplified installation, unmatched aesthetics.
Home lift
Design and craftsmanship: our 100% Italian home lifts adapt seamlessly to every environment.
-
-
HLB+
Your HLB. Boosted.
-
HLG
When power is needed: a gearless home lift with low energy consumption.
Home lift
HLB
Low energy consumption, simplified installation, unmatched aesthetics.
Designed to ensure high efficiency and performance, the HLB features an electric motor with a gearbox, combined with belt drive, an advanced, quiet technological solution.
Launched in 2018 to overcome the limitations of hydraulic and screw-driven technologies, the HLB is the ideal choice for residential environments. It has established itself as the most versatile product in the Eltec Lift range, thanks to its high customisation potential, silent operation, and consistent performance.
The cabin dimensions can be tailored to the intended use, ensuring a perfect fit for both compact spaces and larger areas.
With refined lines, premium materials, and a wide range of finishes, the Eltec HLB suits renovations and new builds alike across residential, commercial, and public settings, guaranteeing seamless aesthetic and functional integration in any architectural environment.
-
Fully customisable;
-
Minimal space requirements: 180 mm pit depth, minimum headroom 2520 mm, special versions with 2390 mm headroom, maximum travel 20 m;
-
Minimum masonry shaft dimensions: W 1090 mm x D 910 mm;
-
Minimum and maximum internal cabin dimensions: W 670 mm x D 720 mm / W 1250 mm x D 1400 mm;
-
Capacity up to 400 kg;
-
Up to three access points available;
-
Quiet operation, consistent speed, and odor-free;
-
Low energy consumption and guaranteed efficiency according to VDI 4707 Part 1:2009 – Certificate no. NL20EPCL1003-588-18 dated 15-06-2020;
-
European energy efficiency class A.
Home lift
HLB+
Your HLB. Boosted.
HLB+ is a solution designed to offer increased load capacity through the use of a gearless motor (450 kg) and the option to enlarge the cabin dimensions, providing greater space and comfort. The technical specifications and configurations of the HLB+ are tailored to the structural and design requirements of each project.
By working closely with our clients, we define the applicable configurations together through a dedicated consultation, based on their specific design needs.
-
Fully customisable;
-
Minimal space requirements: Pit depth 180 mm, minimum headroom 2600 mm, maximum travel 20 m;
-
Minimum masonry shaft dimensions: W 1090 mm x D 1160 mm (side mechanics, single swing door at floor)
-
Minimum and maximum internal cabin dimensions: W 670 mm x D 910 mm / W 1250 mm x D 1400 mm;
-
Capacity up to 450 kg;
-
Up to three access points available;
-
Quiet operation, consistent speed, and odor-free;
-
Low energy consumption and guaranteed efficiency;
-
European energy efficiency class A.
Home lift

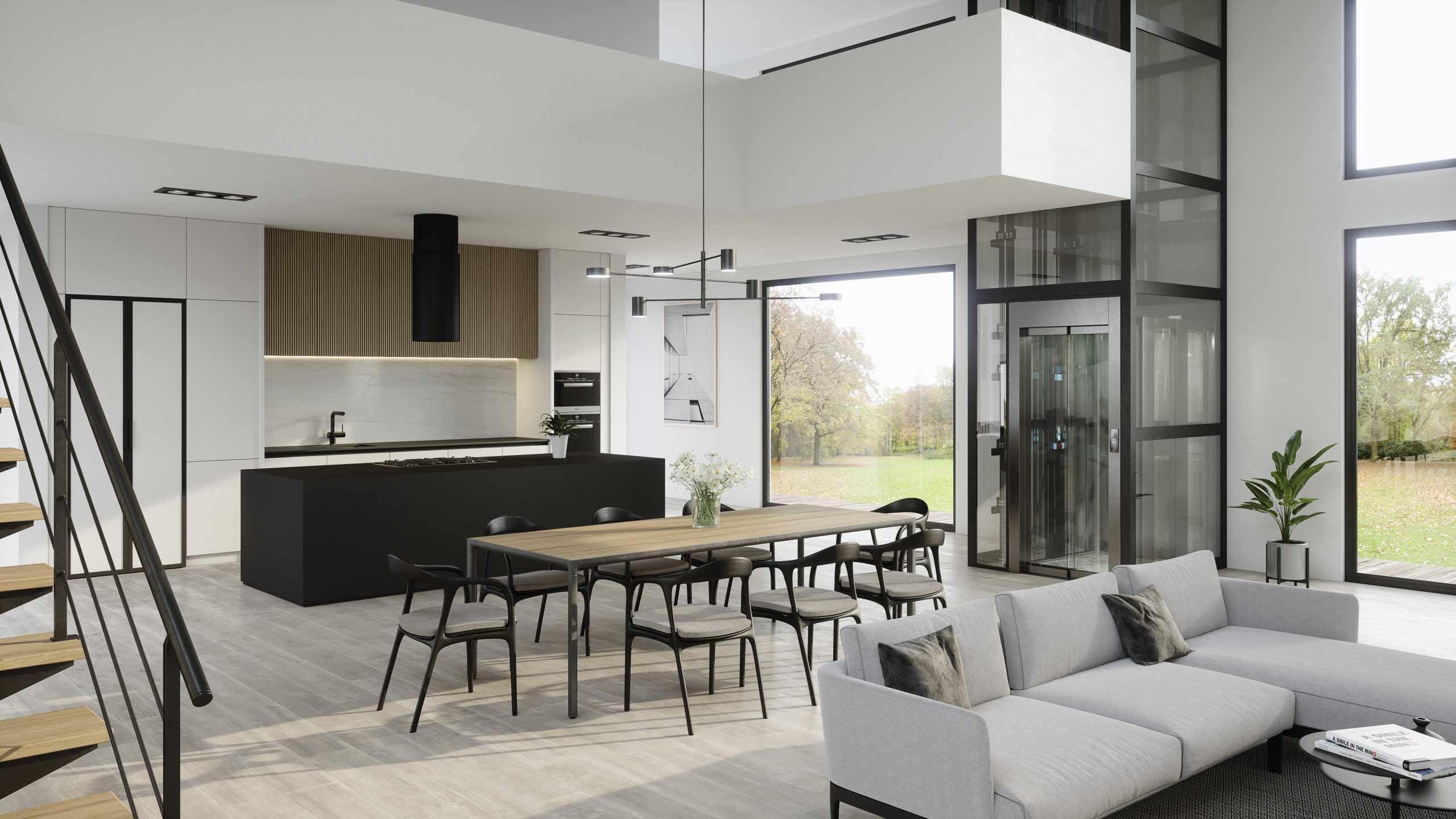

HLG
When power is needed: a gearless home lift with low energy consumption.
Meticulously crafted, this product features a high-powered motor that delivers outstanding performance, with a load capacity of up to 500 kg.
Designed for specific applications, including outdoor environments, it offers extensive aesthetic customisation options, providing a solution that is not only high-performing but also visually distinctive.
This solution is particularly suited for marine installations, with technical configurations assessed on a case-by-case basis according to application and design requirements.
-
Fully customisable, with the added option to personalise the floor with client graphics;
-
Minimal space requirements: 100 mm pit depth with minimum headroom of 2710 mm; 270 mm pit depth with 2510 mm headroom; maximum travel 20 m.
-
Minimum masonry shaft dimensions: W 1125 mm x D 1090 mm (side mechanics, single swing door at floor)
-
Minimum and maximum internall cabin dimensions: W 740 mm x D 900 mm / W 1300 mm x D 1400 mm;
-
Capacity up to 500 kg;
-
Up to three access points available;
-
Quiet operation, consistent speed, and odor-free;
-
Low energy consumption, high capacity;
-
European energy efficiency class A.
